Rotabroach Element 40 Mag Drill + Element 14 Chopsaw Bundle Deal
From €735.00 Excl. VAT

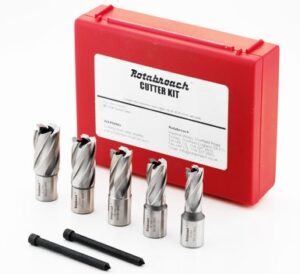

Great Bundle deal on Rotabroachs high quality magnetic drill and Chopsaw! Comes complete with a 7 piece cutter set and a Chopsaw Blade!
Element 40 mag drill Features
-Quality: With an emphasis on quality the Element range is designed to offer durable, high-performance machines. quality is inbuilt to all aspects of the Element range
-Perform High-quality components are used throughout the entire manufacturing process ensuring a robust and long-lasting product
-Design: The Element range has been developed to push it to the forefront of the industry for performance, looks and longevity
-Lightweight: Inventive designs and advanced manufacturing has ensured the new Element range is among the lightest machines available in the world
-Cutsmart: Unique torque display Cutsmart takes the difficulty out of drilling a hole. Clever electronics and visual display will guide you throughout the cut, optimising the machines’ performance and protecting your cutters
-Powerful motor: Increased motor power for greater efficiency.
-High-performance gear: Increased wear resistance on the gears for prolonged life and durability
-Twist drill compatibility: Twist drills can be used with the Element range
-Quick release capstan: Can easily be transferred to enable operation from either side of the machine
-Slimmer, stronger magnet: High power magnet with reduced dimensions and weight
-Mounted cutting fluid bottle: To save space when operating in small areas
-Internal motor cable: Fed into the machine to prevent damage and reduce the risk of harm to the user
-Ergonomic handle: Rubber insert for a better and more comfortable grip
-User-friendly control panel: New easy to read, low profile switches and Cutsmart technology
-Fixed guard
-Internal cable
-Flush switches
-Mechanical clutch
SPECIFICATIONS:
-Maximum Hole Cutting Capacity: 40 mm Diameter x 50 mm Depth
-Full Load 12 amps (110 volt): 1200 watt
-Full Load 6 amps (240 volt): 1200 watt
-Arbor Bore Diameter: 19.05 mm (3/4″)
-No Load (Gear One): 600 rpm
-No Load (Gear Two): 300 rpm
-Magnetic Adhesion: 8000 N/850 Kgs 20 degree Celsius with 25 mm minimum plate thickness
-Height: 510 mm
-Width: 175 mm
-Length: 285mm
-Weight: 12.2 Kg
Element 14 Cold Cut Chopsaw 355mm Features
Heavy duty metal cutting chop saw from Rotabroach. The Element 14 cut off saw makes light work of cutting steel plate, square tube, angle iron, pipe, tube and sheet metal. Quicker, more accurate and safer than conventional abrasive cutting saws, it produces a cut that is virtually spark free with no burr. Comes complete with a swivel vice which enables 45º cutting and a steel cutting blade. Optional blades enable cutting in aluminium and other ferrous and non ferrous metals. Fully compatible with all metal cutting TCT blades from Evolution and other brands. Comes complete with an overload switch to protect the motor, retracting blade guard and quick release metal chip collection chamber.
-Rotabroach’s Element 14 Chop Saw makes light work of cutting steel plate, square tube, angle iron, pipe, tube and sheet metal.
-Quicker, more accurate and safer than conventional abrasive cutting saws.
-Produces a cut that is virtually spark free with no burr.
-Swivel Vice enables 45º cutting.
-Optional blades enable cutting in steel, aluminium and other ferrous and non ferrous metals.
SPECIFICATIONS:
-Model Number: Element 14/1 / Element 14/3
-Motor Specification: 110V 2200W / 230V 2200W
-No Load RPM: 1300 RPM
-Cutting Capacity Box Section: 120mm x 120mm
-Cutting Capacity Rectangular section: 95mm x 185mm
-Cutting Capacity Pipe: 130mm
-Overall Dimensions: 565mm x 285mm x 405mm
-Machine Weight: 24kg
-Safety Features: Overload Switch / Retracting Blade Guard / Quick Release Metal Chip Collection Chamber
| Mag Drill Voltage | 110v, 220v |
|---|---|
| Chopsaw Voltage | 110v, 220v |
