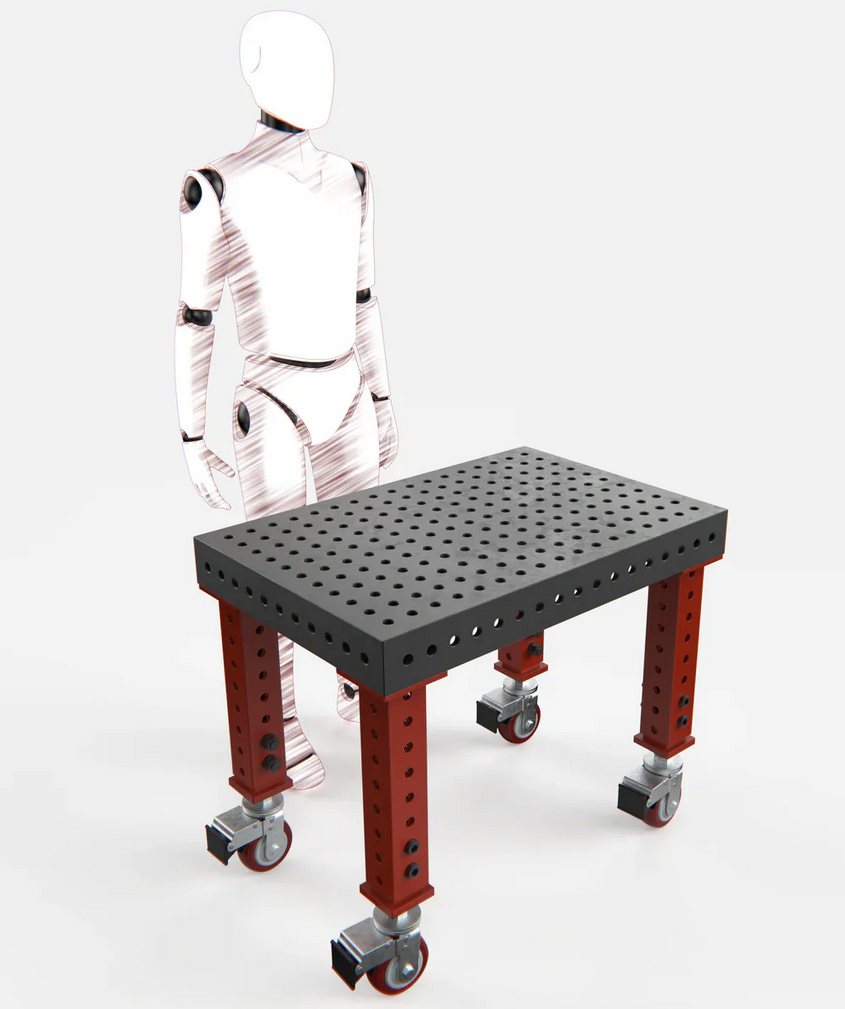

Fireball Tool Dragon Wagon 1000x600mm with Adjustable Legs and Castors (19mm Holes)
€1,800.00 Excl. VAT
Description
-
- Coating- Corrosion, spatter, and scratch resistant Dragon Scale
- Ribbing- Full height 100 mm ribbing engineered to torsional rigidity
- Holes- All counterbore and chamfered on back sides
- Side face on the tables are 100 mm tall with 1 row of holes.
- The modular leg accessory system provides an extensive range of customization options.
- 12 mm thick table that shares all the same fixtures as the 25 mm thick table.
- Flatness (± 0.127 mm) full length, corner to corner
Tabletop Dimensions 1000×600 mm Table Side Height
100 mm
Table Thickness
12 mm
Hole Diameter
19 mm
Grid Pattern
50 mm
Material
Gray Cast Iron
Finish
Dragon Scale
Tabletop Weight
120 kg
Leg Type
Standard Duty
Number of Legs
4
Capacity Per Leg
270 kg
Rated Weight Capacity with Legs
680 kg
Tabletop Construction
12 mm thick Gray Cast Iron on top and 12 mm thick sides, additional reinforcement ribs underneath. Machined flat on all 5 sides to within +/- 0.0635 mm per 600×600 mm area. Side apron on the tables are 100 mm tall with 1 row of holes.
Dragon Scale Coating – Corrosion, spatter &scratch resistant
Counterbore Underside
Chamfer on top and bottom
Dragon Scale Coating
How does the FM19 system compare to other Table Systems?
FM19 – Ø19 mm
- 50 mm Grid Pattern
- 19 mm Diameter Hole
| Finish | Nitrided |
|---|---|
| Legs | 6 X Heavy duty 767mm legs, 6 x Adjustable 565 – 819mm legs, 6 x Adjustable 685 – 940mm legs + Castor |
