ESAB Rogue EMP 210 PRO Multi Purpose Welder 0700301092
€1,199.00 Excl. VAT€1,149.00 Excl. VAT
Description

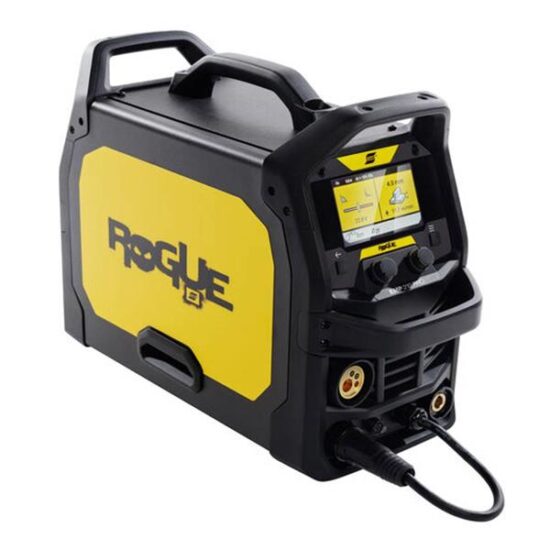

ESAB 0700301092 Rogue EMP 210 PRO Multi Purpose Welder
ESAB Rogue EMP 210 PRO is an inverter-based multi-process welding system designed to address all your welding project needs, from light fabrication to repair and maintenance. The system features industrial-grade arc performance and full featured controls that allow the welder to fine tune arc characteristics based on the material they are welding.
With a weight of only 16.7 kg, 230 V single-phase input and compatibility with 10 kVA generators, this system provides maximum flexibility and portability, both in the shop and in the field.
Delivery includes: 210A multi-process power source with mains cable 16 A plug 3 m, MXL 201 MIG Torch Euro 3 m, Return cable kit, OKC 35-50 16 mm2, 3 m, Electrode holder Handy 200A heavy duty 50 mm OKC 3 m, Gas Hose with quick connect/open 4.5 m, ESAB OK AristoRod 12.50 0.8mm 1kg, ESAB GoldRox Electrode, 2.5×350 mm 1 kg, Feed rolls 0.6/0.8 mm V (fitted), 0.8/0.9 mm V and 0.8/0.9 mm VK, Safety instruction.
Features:
Entry-level welder with professional performance.
Rogue EM and EMP single-phase welding power sources take everything welders loved about Caddy Mig to the next level with proven Rogue performance and a rugged industrial design. Power Factor Control (PFC) technology allows for a highly efficient and steady arc that is resistant to power fluctuations. Break away from convention with Rogue.
Built to withstand impact after impact.
No other machine at this price point comes close to matching Rogue’s strength. Its robust and rigid fibreglass-moulded housing is built to withstand impact after impact, in the shop or in the field. Like every ESAB machine, Rogue comes with our industry-leading, 3-year warranty for unbeatable peace of mind. Goodbye cheaply constructed welders, hello strength and toughness when you go Rogue.
-True multi-process with Synergic MIG, Manual MIG, MIG Brazing, Flux-Cored, Lift TIG, and MMA (including 6010)

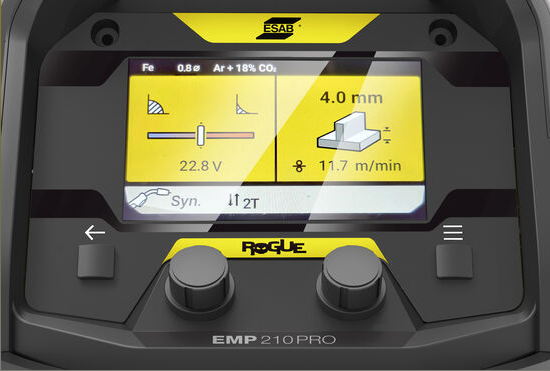

-Intuitive 5.0 in TFT screen offers clear views with direct interaction
-Synergic Weld Programs –full range of welding parameters, 0.5 –10.0 mm with single knob control
-Power Factor Correction (PFC) –ensures a stable arc, resistant to power fluctuations even while working on long extension cables up to 100 m
-Unique rugged industrial design –supporting multiple lift points and cable management
-Arc Dynamics –fine tune arc characteristics for a crisp/stiff arc for carbon steel or a smooth/soft arc for stainless steel
-Jobs –10 memory save/recall function
-Spool Gun Ready –Rogue automatically configures set up when spool gun is connected.
-IP23S rated for indoor/outdoor use
Industry
-Automotive
-Automotive Bodies
-Agricultural Equipment
-Civil Construction
-Mechanical Contractors
-Repair and Maintenance
-Light Fabrication
Specifications:
| Voltage | 230 VAC 1, 50/60 Hz |
| MIG (GMAW) Welding Output | 210 A / 24.5 V @ 30 % Duty Cycle 136 A / 20.8 V @ 60 % Duty Cycle 105 A / 19.2 V @ 100 % Duty Cycle |
| MMA (SMAW) Welding Output | 180 A / 27.2 V @ 30 % Duty Cycle 116 A / 24.7 V @ 60 % Duty Cycle 90 A / 23.6 V @ 100 % Duty Cycle |
| TIG (GTAW) Welding Output | 210 A / 18.0 V @ 30 % Duty Cycle 136 A / 15.4 V @ 60 % Duty Cycle 105 A / 14.2 V @ 100 % Duty Cycle |
| Current Range | 30-210 A |
| Voltage Range | 12-26 V |
| Wire Feeder Specifications | 2.0-16.5 m/min |
| Open Circuit Voltage | 78 VDC |
| Metal Aluminium Stainless Steel Cored Wire Mild Steel |
0.6-1.0 mm 0.6-1.0 mm 0.6-1.0 mm 0.6-1.0 mm |
| Max Spool Diameter | 100 & 200 mm |
| Power Factor at Maximum Current | 0.99 |
| Efficiency at Maximum Current | >82 % |
| Energy Save Mode | 50 W |
| Operating Temp | -10 – +40 °C |
| Enclosure Class | IP23S |
| Certification | CE |
| Dimensions, L x W x H | 590 x 220 x 385 mm |
| Weight | 16.7 kg |
