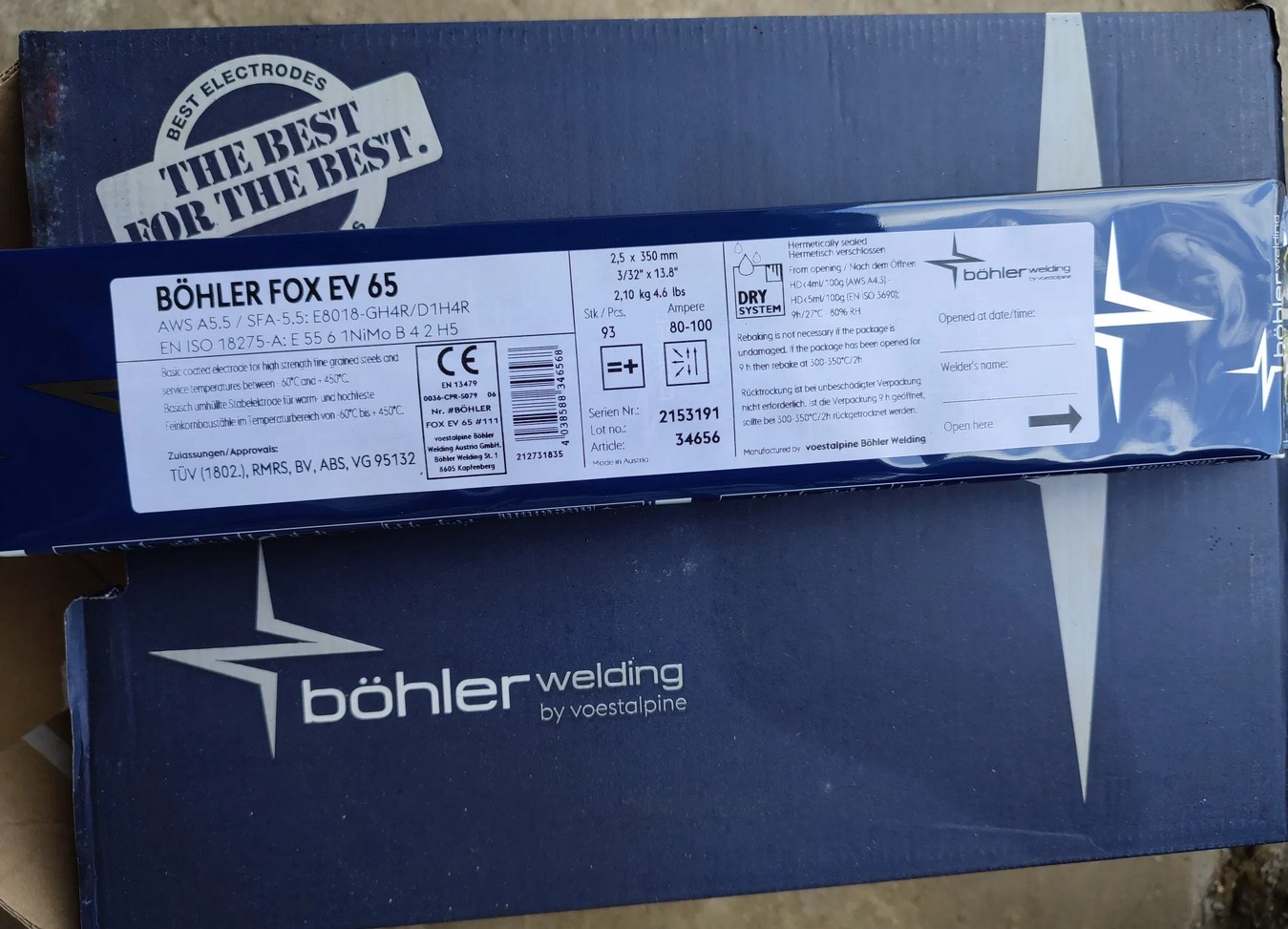

BOHLER FOX EV65 E8018-GH4R Low Hydrogen Electrodes (Clearance)

Characteristics and typical fields of application

Basic electrode with high ductility and crack resistance, for high- strength fine- grained steels.
Ductile down to -60°C. Resistant to ageing.
Easy to handle in all positions, except vertical- down.
Very low hydrogen content (acc. to AWS condition HD <4 ml/100 g weld metal).

Base materials
Constructional steels, pipe- and vessel steels, cryogenic fine-grained steels and special grades
S460N, S460M, S460NL, S460ML, S460Q-S550Q, S460QL-S550QL, S460QL1-S550QL1, P460N,
P460NH, P460NL1, P460NL2, L415NB, L415MB-L555MB, L415QB-L555QB,
alform 500 M, 550 M, aldur 500 Q, 500 QL, 500 QL1, aldur 550 Q, 550 QL, 550 QL1, GE300,
20MnMoNi4-5, 15NiCuMoNb5-6-4
ASTM A 572 Gr. 65; A 633 Gr. E; A 738 Gr. A; A 852; API 5 L X60, X65, X70, X80, X60Q, X65Q,
X70Q, X80Q
